Description
For complex surfaces and multiple measurements, STIL has introduced a range of multichannel controllers, the largest of which being MULTIMA 48. This unique controller encompasses 48 measurement channels and can be used with different optical heads for optimum results.
STIL - CM 48 Controller | Technology | Chromatic confocal |
---|---|---|
Working frequency | Up to 10 kHz | |
Sensitivity | Very High | |
Compatible optical pens | CL-MG, OP and Probe | |
Input/Output | Ethernet, encoder |
Click here for Multima 48 data sheet
Next in line in the new range is the MULTIMA 12. This unique controller
encompasses the capabilities of 12 of the best-selling CCS PRIMA and can be used with different optical heads for optimum results.
STIL - Multima 12 Controller | Technology | Chromatic confocal |
---|---|---|
Working frequency | Up to 2 kHz | |
Sensitivity | High | |
Compatible optical pens | CL-MG, OP, Everest and Probe | |
Input/Output | USB |
Click here for Multima 12 data sheet

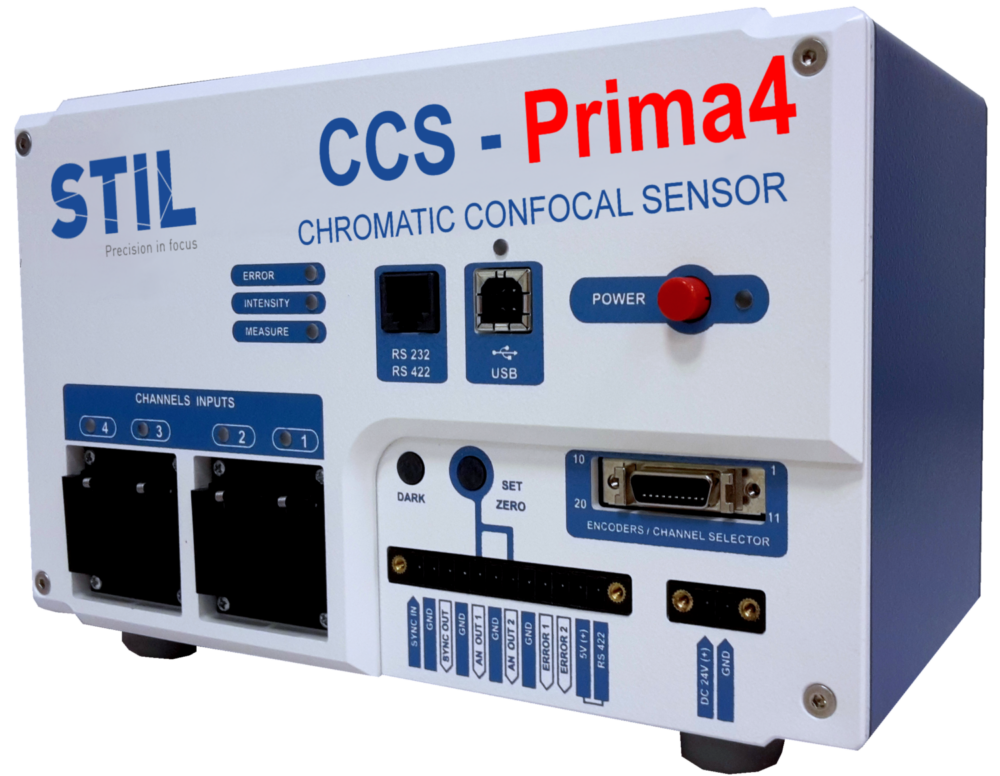

PRIMA 4 is a four channel controller for sequential measurements, so the user has a compact and cost effective solution if up to four CCS PRIMA controllers are needed.
STIL - Prima 4 Controller | Technology | Chromatic confocal |
---|---|---|
Working frequency | Up to 2 kHz | |
Sensitivity | High | |
Compatible optical pens | CL-MG, OP, Everest and Probe | |
Input/Output | Analogue output |
PRIMA 2 is a two channel controller for sequential measurements, so the user has a compact and cost effective solution if two CCS PRIMA controllers are needed.
STIL - Prima 2 Controller | Technology | Chromatic confocal |
---|---|---|
Working frequency | Up to 2 kHz | |
Sensitivity | High | |
Compatible optical pens | CL-MG, OP, Everest and Probe | |
Input/Output | Analogue output |
The following Optical Pens can be used interchangeably with the above products:
STIL’s Chromatic Confocal modular optical heads series is the perfect balance of technology and precision. In order to optimize the choice of your sensor, it is essential to begin by choosing your optical pen according to your accuracy and measuring range needs. The optical pen or optical probe is the measuring head of the sensor. It is connected to the controller via an optical fibre. The various optical pens are defined by different measuring ranges and resolutions. A single controller can work with several optical pens.
Chromatic Confocal technology is the optimized solution to produce different types of high-accuracy measurement. Each optical pen has a different working distance, spot size on the target and angular opening of the light beam. The use of optical pens allows STIL’s technology to be completely contact free, a district advantage over CMM Probes, which can alter or deform the target during measurements. With the right choice of measurement set up there is no need to refocus the light beam on the target for a series of measurements on identical objects. As chromatic confocal optical pens do not require any energy sources and do not have moving parts, they are, in principle, unalterable and do not require a reset or a zero-setting during a series of measurement.
Optical Pens:
CL-MG modular optical heads
CL-MG Modular Optical Heads | Measuring Range | 0.1 to 24 mm |
---|---|---|
Axial Resolution | 5 to 800 nm | |
Sample slope | +/- 8.5 deg to +/- 42.5 deg |
|
Diameter | 27 mm |
Download data sheet here
STIL’s EVEREST high performance chromatic position sensor comes in two versions, the K1 and the K2: the former with a measuring range of 1 mm, the latter of 2mm, both with exceptional resolution.
EVEREST high performance optical heads
EVEREST High Performance Optical Heads | Measuring Range | 1 to 2 mm |
---|---|---|
Axial Resolution | 37 to 75 nm | |
Sample slope | +/- 42 deg to +/- 44 deg |
|
Diameter | 82 mm |
Download K2 data sheet here
Download K1 data sheet here
OP universal optical heads
OP universal optical heads | Measuring Range | 220 μm to 100 mm |
---|---|---|
Axial Resolution | 25 nm to 30 μm | |
Sample slope | ± 2° to ± 30° |
|
Diameter | 15mm to 120mm |
ENDO – PROBE miniature optical heads
ENDO - PROBE optical heads | Measuring Range | 100 μm to 10 mm |
---|---|---|
Axial Resolution | 25 nm to 900 nm | |
Sample slope | ± 4° to ± 24° |
|
Diameter | 4 mm to 8 mm |
Single channel controllers
CCS – Prima universal controller
CCS - Prima controller | Technology | Chromatic confocal |
---|---|---|
Working frequency | Up to 2 kHz | |
Sensitivity | High | |
Compatible optical pens | CL-MG, OP, Everest, Endo-Probe | |
Input/Output | USB, RS232, RS422, Trigger I/O, 3 encoder inputs, analog output |
CCS – Optima+ high speed controller
CCS - Optima+ Controller | Technology | Chromatic confocal |
---|---|---|
Working frequency | Up to 10 kHz | |
Sensitivity | Very High | |
Compatible optical pens | CL-MG, OP, Everest, Endo-Probe | |
Input/Output | USB, RS232, RS422, Trigger I/O, 3 encoder inputs, analog output |
Special Controller: STIL – DUO dual technology controller (Chromatic Confocal and Interferometric)
STIL have recently expanded their product portfolio to include a white light interferometer, for applications not suited to their classic range of instruments using their patented chromatic confocal sensors. By combining both techniques into a single instrument they can cover an unrivalled range of sample types, including
- measurement of thicknesses which are too thin to be measured with a classic chromatic confocal sensor
- measuring the shape of samples as TSV (Through-Silicon Via) which present a very high ratio depth/diameter
The use of white light interferometry frees the system from the disadvantage of laser based interferometry, which are inherently highly sensitive to vibrations, airflow and sudden movements.
STIL - DUO | Technology | Chromatic confocal and White Light Interferometry |
---|---|---|
Working frequency | Up to 2 kHz | |
Sensitivity | High | |
Compatible optical pens | CL-MG, OP, Everest, Endo-Probe and OPILB | |
Input/Output | Ethernet, RS232, Trigger I/O |
Download data sheet here
