BrixXHUB® High Power Laser Combiners

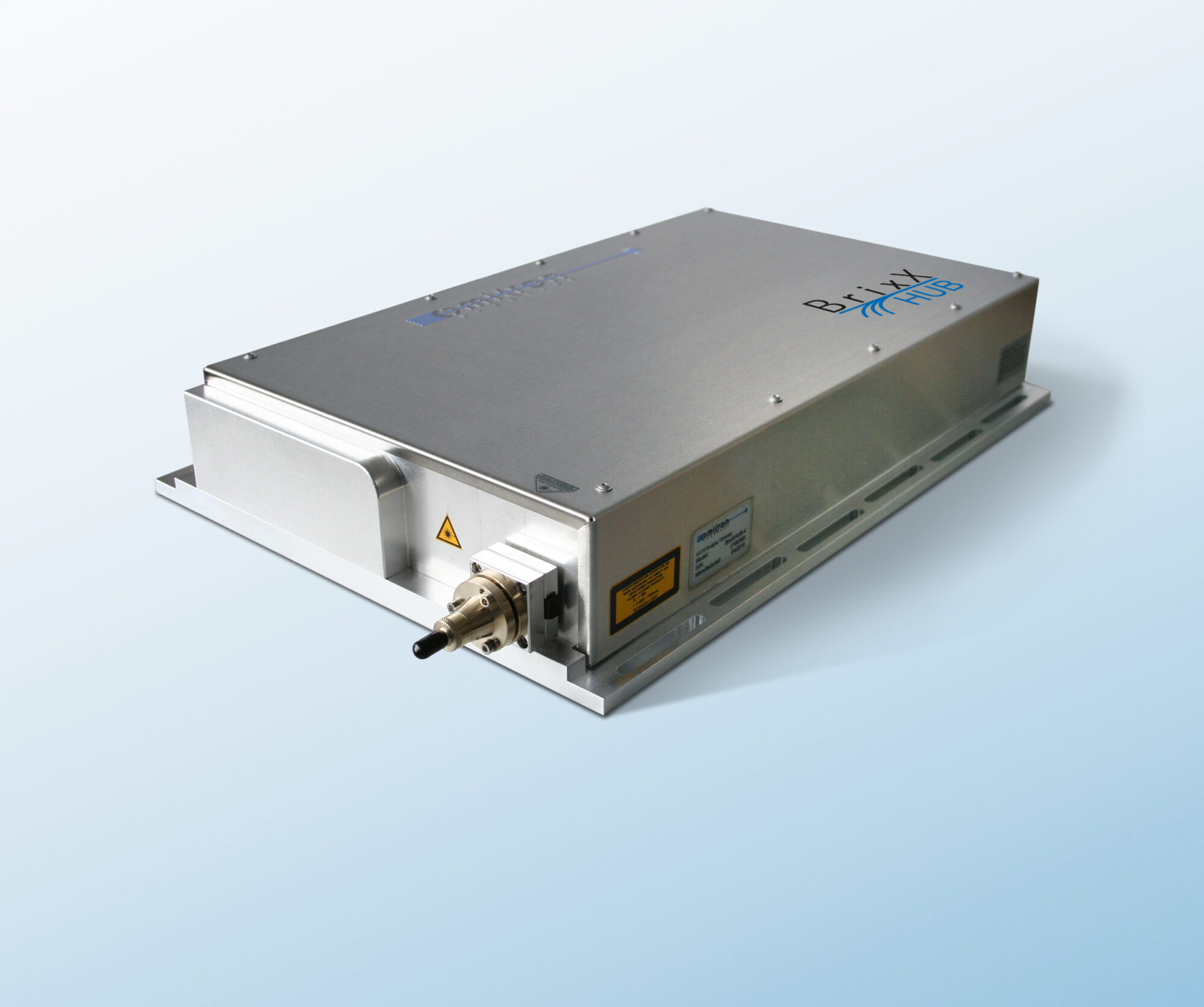

BrixXHUB® – high-power laser combiner with up to 6 wavelengths.



Description

The BrixXHUB® High-Power Laser Combiner can be equipped with up to 6 DPSS or diode lasers of different wavelengths (two of the same per wavelength are possible) in a compact and rugged design. Wavelengths between 375nm and 1550nm and optical output powers up to 5000mW per laser line can be installed. The BrixXHUB is available in free-space Emission or with fibre coupled output. With the optionally available speckle reducer, the BrixXHUB is ideally suited for laser wide field applications like superresolution microscopy or high-speed machine vision. WIth the USB and RS-232 Interfaces of each individual laser, the BrixXHUB unit can be easily installed into new or existing Setups

Each BrixXHUB laser combiner is delivered with the Omicron Control Center (OCC) – Laser Control Software. The software can control multiple lasers and offers a Master section which controls all lasers in parallel. The OCC can be used for daily use or just for configuring the laser for computer independent operation once.

Key Features:

  • Up to 6 wavelengths beam-combined and efficiently
  • fibre coupled in one compact housing
  • Wavelengths between 375 and 1550nm available
  • free-space emission or Multi-Mode fibre coupled output
  • Conductively cooled
  • Optional internal speckle reducer for homogeneous laser wide-field Illumination
  • Windows™ based laser control software included.
  • Field upgradable
  • OEM versions available
  • Software drivers for Metamorph, LabVIEW and Micromanager available

Technical Specifications:

BrixXHUB® – Specifications:

Available models:

BrixXHUB®-4 – combines up to 4 laser lines

BrixXHUB®-5 – combines up to 5 laser lines

BrixXHUB®-5 – combines up to 5 laser lines

Available wavelengths and powers:

(Internal laser power)

375nm / 400mW
405nm / 1200mW
445nm / 2500mW, 5000mW
473nm / 1000mW
488nm / 2000mW
520nm / 1000mW
555nm / 1000mW
638nm / 700mW, 1200mW, 2200mW
647nm / 500mW
750nm / 1500mW
808nm / 2500mW
915nm / 1500mW
980nm / 1000mW
1064nm / 1500mW
1550nm / 2000mW

Integration of further High-Power Multi-Mode diode lasers as well as DPSS lasers + AO modulator possible on request.

Fibre coupling:

Type:                                      MultiMode fibers with round or square shape

Fibre output:                          FC/PC or SMA

Free emission:

Beam diameter:                     e.g. 2,5mm 1/e²

(Beam diameter depends on wavelength)

Control interface: Type:                                     USB 2.0 / RS-232
Laser control software: WindowsTM based laser control software – Omicron Control Center (OCC)
Supply voltage: 24VDC (depending on laser type)
Mechanical size: BrixXHUB-4: L x W x H: 495mm x 416mm x 82mm (with optional Speckle Reducer)
BrixXHUB-5: L x W x H: 443mm x 416mm x 82mm(Size can vary with type of lasers and options installed)



View/ Download the datasheet here.

Applications Areas:

  • Wide-field superresolution microscopy (PALM, STORM, SIM).
  • High-power RGB applications.
  • Optogenetics.
  • Test and Measurement.
  • Machine Vision.
