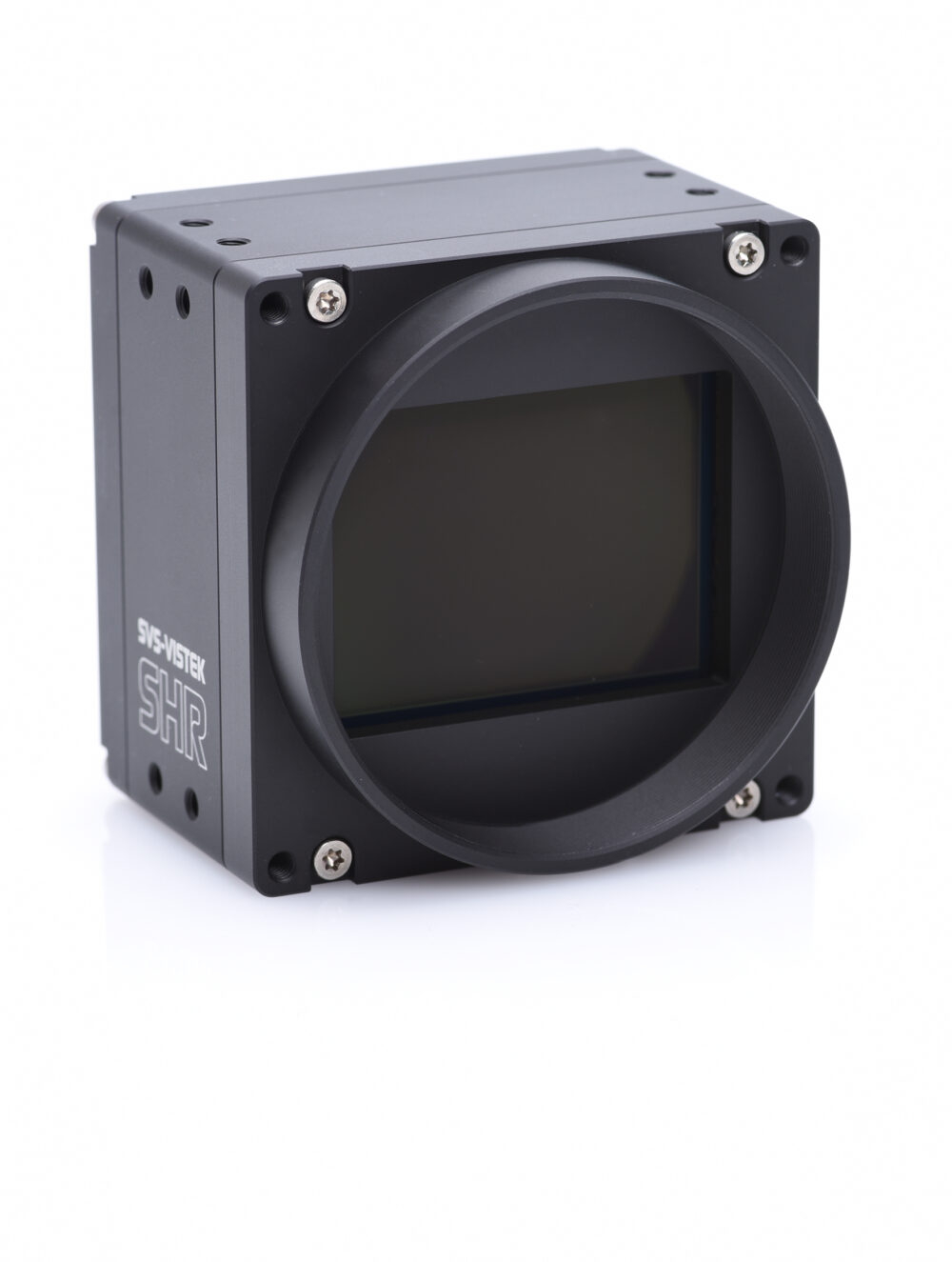

Description
The SVS Super High Resolution Machine Vision Cameras features low-noise half-frame CCD and CMOS images sensors with large pixels in a class of its own. Excellent tap balancing and an outstanding mechanical and optical precision make this camera suited for the most demanding imaging tasks. Low noise and state-of-the-art linearity are combined with user defined pixel correction and user defined shading correction. The cameras uses the CoaXPress interface, which currently is the fastest standardized industrial solution for long-distance industrial cameras with thin cables. The industrial camera I/O interface facilitates integration.
Key Features of SVS Super High Resolution Machine Vision Cameras :
- High resolution with large pixels and an optimized image rate
- Progressive scan / global shutter CCD from ON Semi
- Rolling shutter CMOS sensors from Sony
- Mono and color (Bayer pattern, auto white balance)
- 512 MB internal image memory
- Custom defect pixel correction
- User definable lens shading correction
- ROI, look up table, binning, gamma, offset
- Compatible with GenICam
- Shutter speed: manual / auto / external trigger
- Integrated multi channel LED strobe controller
- Industrial TTL-24V I/O interface with SafeTrigger, programmable logic functions, sequencers and timers, RS232
- Numerous M72 lens adaptors for virtually any industrial lens

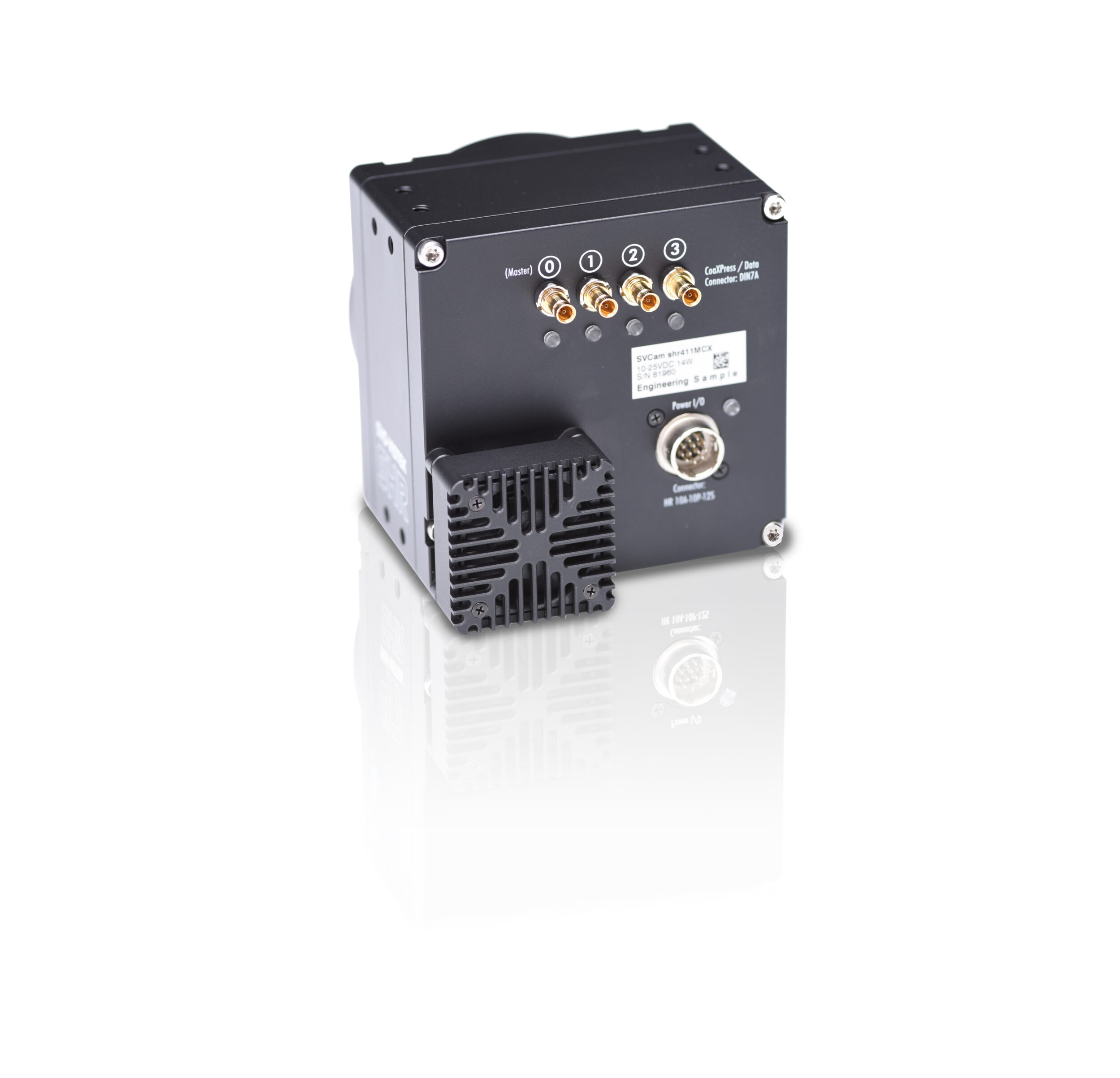

SVS Super High Resolution CoaXPress Cameras:
| Model | Resolution (px x px) | Sensor | Sensor Size | Frame Rate (fps) | Colour or Monochrome | Mount | Interface | Datasheet |
|---|---|---|---|---|---|---|---|---|
| shr461CCX | 11648 x 8742 | IMX461LQA / Sony | 55mm | 8.7 | Colour | M72x0.75 | CXP-6 4 Lanes | Datasheet |
| shr461MCX | 11648 x 8742 | IMX461LLA / Sony | 55mm | 8.7 | Monochrome | M72x0.75 | CXP-6 4 Lanes | Datasheet |
| shr411CCX | 14192 x 10640 | IMX411AQR / Sony | 66.69mm | 6.1 | Colour | M72x0.75 | CXP-6 4 Lanes | Datasheet |
| shr411MCX | 14192 x 10640 | IMX411ALR / Sony | 66.69mm | 6.1 | Monochrome | M72x0.75 | CXP-6 4 Lanes | Datasheet |
