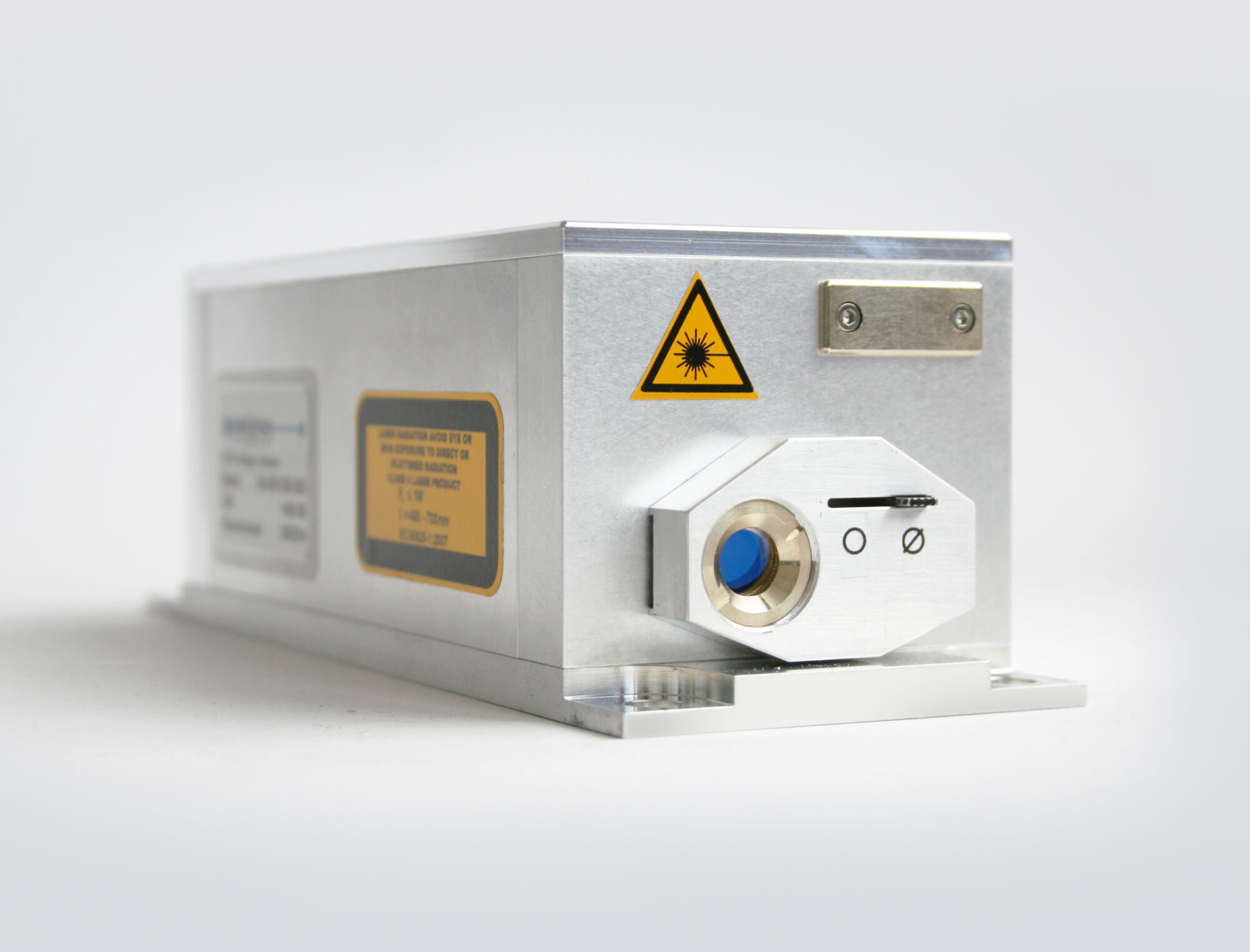

QuixX® Picosecond-pulsed Diode Lasers

QuixX® Picosecond-pulsed & CW Diode Lasers

Universal diode lasers with pulsed and continuous wave operation

Description

QuixX® diode lasers offer picosecond pulsed operation as well as continuous wave operation with modulation capability. The QuixX offers full intensity modulation and gating by external analogue and digital modulation signals at high frequencies in both pulsed and CW modes. During pulsed operation, the pulse-shape can be adjusted in shape, height and repetition-rate by software control. In “low-power”-mode the laser does produce Gaussian shaped pulses without any aftershoot / shoulder. In “high-power”-mode a higher peak and average power is achieved compromising some aftershoot. Additionally, in the “expert”-mode, any pulse-shape between low-power and high-power mode can be adjusted. The built-in software programmable function generator can generate frequencies from 1 Hz to 100MHz with very low jitter, just like an external high-end function generator.

For easy synchronisation of external devices like cameras, fast detectors or sensors the laser has an integrated delay generator for its SYNC output signal. The Pulse-to-SYNC signal can be delayed by up to 28 nanoseconds with 10 picoseconds in resolution. This function can also be used to daisy-chain multiple QuixX lasers in Master/Slave setups. Due to Omicron´s proprietary focal shaping technology, the natural astigmatism of laser diodes is eliminated, producing a high quality laser beam with perfect focusability. In free-space application the laser can be focused near to the diffraction limit resulting in a round, Gaussian focal point. This also enables very high fibre coupling efficiency into single-mode fibres. Extraordinary synchronisation features with high resolution delay generator, internal frequency generation and user-selectable input and output signals make these lasers the most versatile laser diode modules for industrial, biotech and scientific use.

Key Features:

  • Picosecond (down to 50 ps) & CW mode
  • Low pulse-to-pulse jitter <2ps in picosecond mode
  • High stability and low noise emission in CW mode
  • User adjustable pulse-shape in picosecond mode – adjust shape, height and repetition rate
  • Arbitrary frequency Generator
  • Programmable delay Generator
  • Modulation & gating capability
  • Highest fibre coupling Efficiency

Wavelengths and Powers:

Other wavelengths and powers may be available on request.

ModelWavelength Powerin CW Mode
Pulse Width
Narrow Pulse / Wide Pulse
Average Power in Pulse Mode
Narrow Pulse / Wide Pulse
QuixX® 375-70 PS375 nm7 mW<70 ps / <400 ps0.6 mW / 2.4 mW
QuixX® 405-120 PS405 nm120 mW<70 ps / <500 ps1.0 mW / 3.0 mW
QuixX® 405-300 PS405 nm 300 mW <90 ps / <500 ps1.2 mW / 4.0 mW
QuixX® 425-120 PS 425 nm 120 mW<60 ps / <500 ps 0.7 mW / 4.0 mW
QuixX® 445-100 PS
445 nm 100 mW <80 ps / <500 ps0.8 mW / 4.0 mW
QuixX® 473-100 PS473 nm100 mW<90 ps / <700 ps0.75 mW / 4.0 mW
QuixX® 488-60 PS488 nm 60 mW<90 ps / <600 ps0.7 mW / 4.4 mW
QuixX® 488-200 PS488 nm 200 mW<110 ps / <55 0ps1.3 mW / 4.1 mW
QuixX® 515-80 PS515 nm 80 mW<110 ps / <600 ps0.6 mW / 1.6 mW
QuixX® 642-140 PS642 nm 140 mW <100 ps / <1000 ps2.8 mW / 10 mW
QuixX® 852-150 PS 852 nm150 mW<70 ps / <500 ps0.6 mW / 4.0 mW
QuixX® 1030-50 PS 1030 nm 50 mW<60 ps / <600 ps 0.45 mW / 2.0 mW
QuixX® 1060-50 PS1060 nm 50 mW<60 ps / <600 ps 0.45 mW / 2.0 mW

Technical Specifications:

PropertyDetail
Beam quality M²<1.15
Beam ellipticity<1.1:1 (astigmatism corrected)
Polarisation>100:1 vertical
Long term power stability<1% / 8h
RMS Noise
20Hz...10MHz
10MHz...500MHz

<0.5% (CW)
<0.5% (CW)
Operation ModesCW operation (ACC - Automatic Constant Current)
CW operation (APC - Automatic Power Control)
Picosecond Pulsed (LP - narrow pulse)
Picosecond Pulsed (HP - wide pulse)
Picosecond Pulsed (expert mode adj. between LP and HP)
Analogue modulation (works for both CW and Picosecond Mode)
Digital modulation (CW mode only)

SYNC in (works for Picosecond Mode as external SYNC or gating input)
Analogue + SYNC in (work for Picosecond Mode)
Digital modulation

Input signal type
>1MHz digital modulation (CW)
up to 100MHz* for external triggering (SYNC in)
0...5V/TTL (200 Ohm), 0...1V / 50 Ohm, -0.5...+0.5V / 50 Ohm or (NIM)0...-1.6V / 50 Ohm (user selectable via software)
Analogue modulation
Input signal type
>3MHz
0...5V / 1,2kOhm or 0...1V / 50 Ohm (user selectable via software)
Laser Enable (electronic shutter)
Input signal type
>200kHz (full ON/OFF)
TTL (2kOhm)
Rise and fall timeAnalogue: < 50ns
Digital: < 500ns
Laser Enable: < 1000ns
Picosecond pulsed repetition rate

external SYNC

Internal programmable frequency generator

From Single-Shot up to 100MHz*

0...500kHz in 1Hz steps
500kHz...80MHz in 500kHz steps
Extinction ratioAnalogue: >1000 : 1
Digital: >1000:1
Laser Enable: infinite (full ON/OFF)
Supply voltage15 ... 24 VDC nominal (14 ... 25VDC max.)
Laser head dimensions 191 x 65 x 60 mm (l x w x h)
Control interfaceRS-232 and USB 2.0

Options and Accessories:

BRIXX.PSU world wide power supply unit for BrixX and QuixX diode lasers
BRIXX.FASYADAP fibre coupling adapter bracket for fibre coupling units
fasy.xxxx various fibre coupling units for single-mode or multi-mode fibres with SMA, FC/PC, FC/APC or FCP8 connector as well as collimated output at various beam diameters

single-mode fibre coupling efficiency >65%
multi-mode fibre coupling efficiency >80%

BRIXX.HEATSINK Standard heat sink for BrixX and QuixX diode lasers
XX.CDRH remote control box with key switch and emission LED for CDRH compliant operation



View / Download the datasheet here.

Applications this product can be used for:

  • Fluorescence Microscopy incl. Confocal, TIRFFRAPSTEDFLIM and many more…
  • TCSPC – Time Correlated Single Photon Counting
  • Time-resolved Spectroscopy
  • LIDAR
  • Time of flight (TOF) experiments
  • Seed Laser for fiber lasers and MOPA Systems
