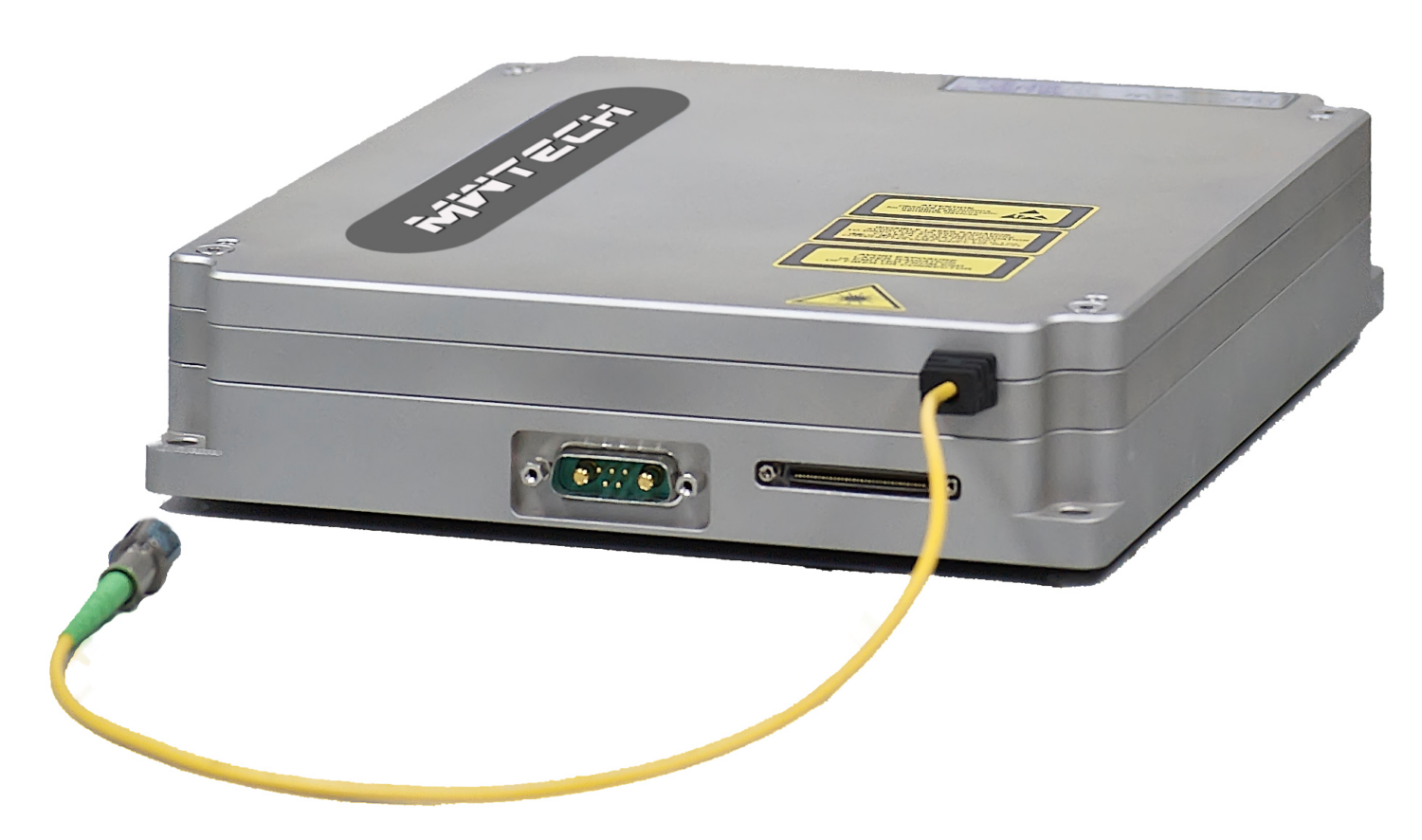

MW Tech PFL-1550

High Energy 1550nm Pulsed Fiber Laser

Description

This 1550nm Pulsed Fiber Laser (PFL-1550-H100) generates high energy nanosecond pulses. It is based on a MOPA (Master Oscillator Power Amplifier) architecture that uses proven subsystems and proprietary laser pulse generation, triggering, gating and ASE suppression technologies. The laser incorporates real-time stabilisation, monitoring and control electronics and firmware that continuously monitor and optimise laser operation.

Key Features:

  • Center wavelength: 1540 – 1560 nm
  • Output peak power: > 10 kW
  • Pulsewidth: 10 to 200 ns
  • Repetition rate: Single-shot to 20 kHz
  • Beam quality, M^2: 1.1 to 1.5

Technical Specifications:

Parameter
(Optical parameters at 25°C)
Details
Center wavelengthIn range 1540 nm -1560 nm
Spectral width (FWHM)< 20 nm
Pulse width (FWHM)*10 ± 2 ns
Pulse repetition frequencySingle-shot to 20 kHz
Peak power>10 kW
Beam propagation factor (M^2)< 1.5
Pulse energy>100 µJ
Output polarisationRandom
Cable length1 m
Fiber terminationOutput beam collimator
Power supply+5 V and +12 V
Dimensions (W x D x H) 205 mm x 255 mm x 95 mm (without fan module attached)
Operating case temperature+5 to +55 degrees C
Storage temperature-10 to +60 degrees C
Humidity0 - 95%, Non-condensing

* pulse width range up to 200 ns available

View/ Download the datasheet here.
