MW Tech PFL-1064

MW Tech 1064 nm Pulsed Fiber Laser

1064 nm Pulsed Fibre Laser.

Description

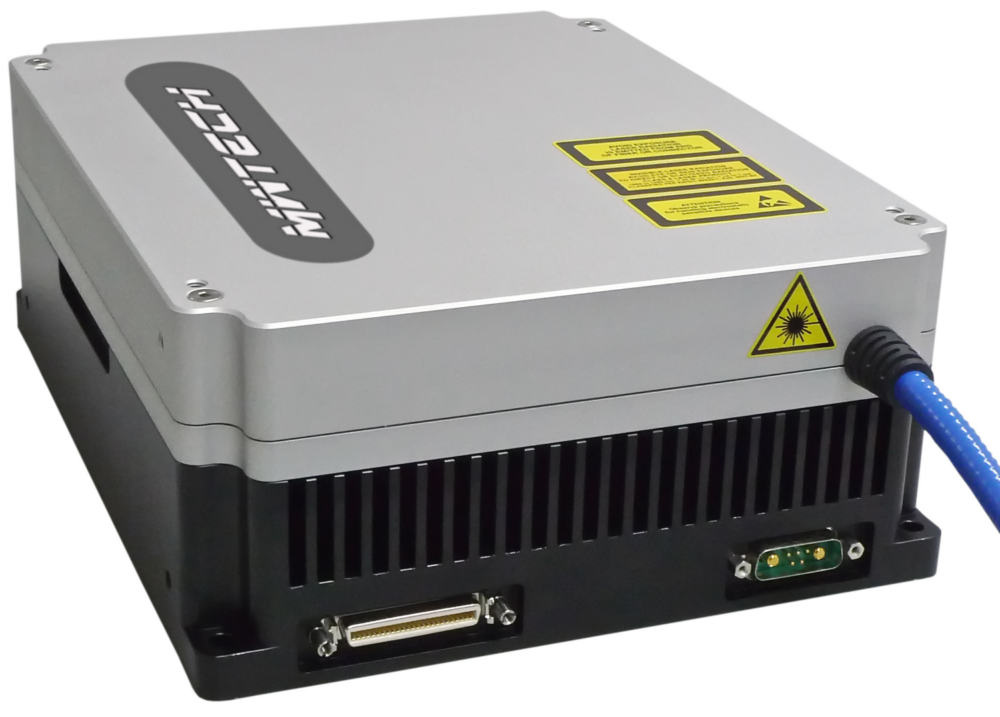

MW Tech’s Pulsed Fiber Laser PFL-1064 generates single frequency nanosecond pulses at 1064 nm. It is based on a MOPA (Master Oscillator Power Amplifier) architecture that uses proven subsystems and proprietary laser pulse generation, triggering, gating and ASE suppression techniques. The laser incorporates real-time stabilization, control electronics and firmware that continuously monitor and optimize laser operation.

Key Features:

  • Average output power: > 1 W
  • Output peak power: > 1 kW
  • ulsewidth: 10 to 200 ns
  • Repetition rate: Single-shot to 500 kHz.

Technical Specifications:

Parameter
(Optical parameters at 25°C)
Specification
Center wavelength1064 ±2 nm
Center wavelength stabilityactive stabilization
Pulse width range10 - 200 ns
Pulse repetition frequencysingle-shot to 500 kHz
Peak power> 1 kW
Rated average power> 1 W
Output polarizationRandom
Output fiberHI1060 or equivalent
Fiber delivery length75 cm
Power supply+3.3 V or +5 V and +15 V
Dimensions (W x D x H)205 x 255 x 95 mm^3

View / Download the datasheet here.
