LOTTE-s 2k512

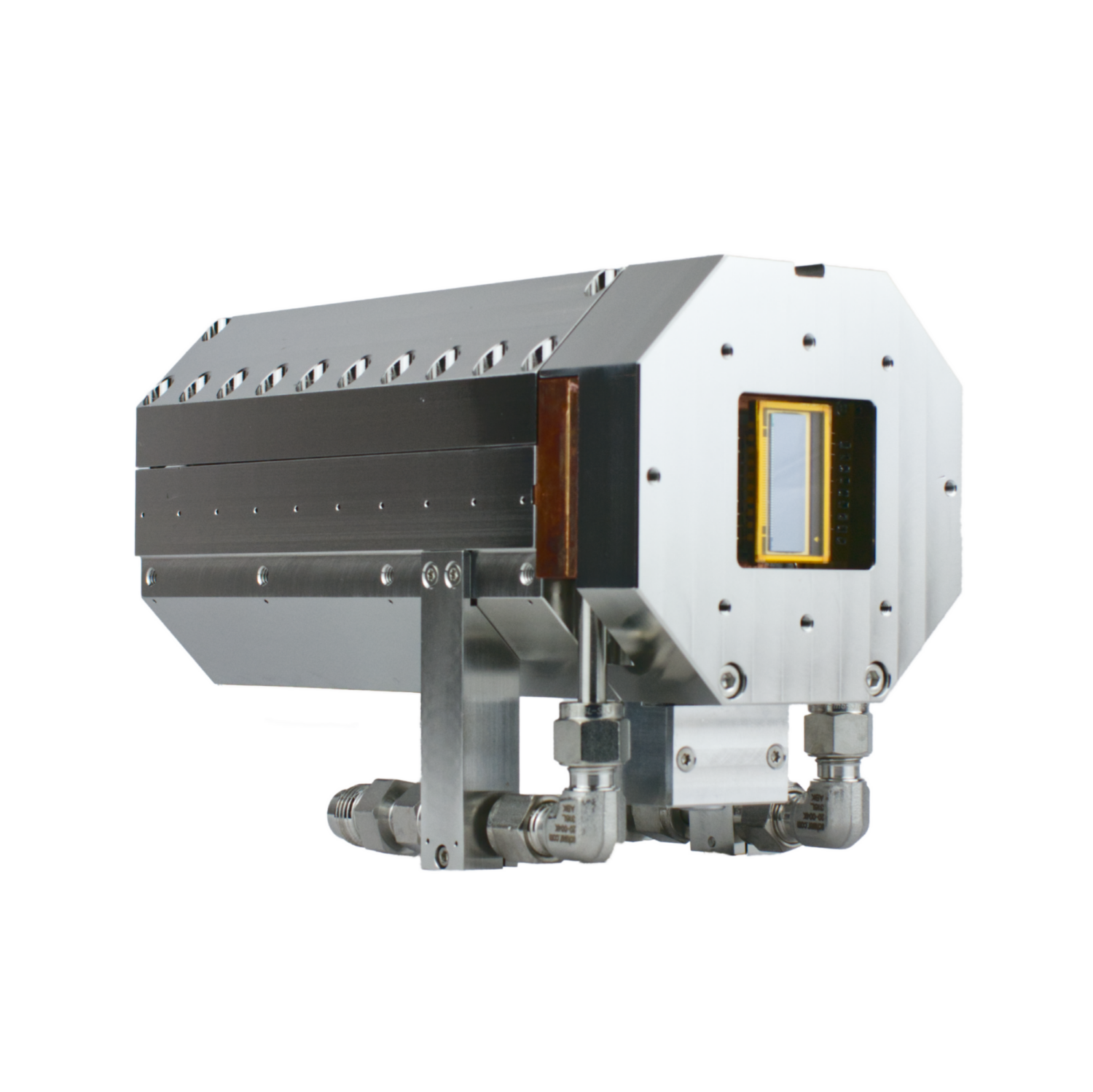

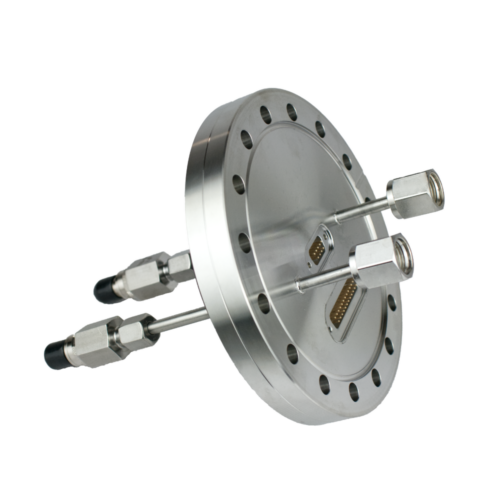

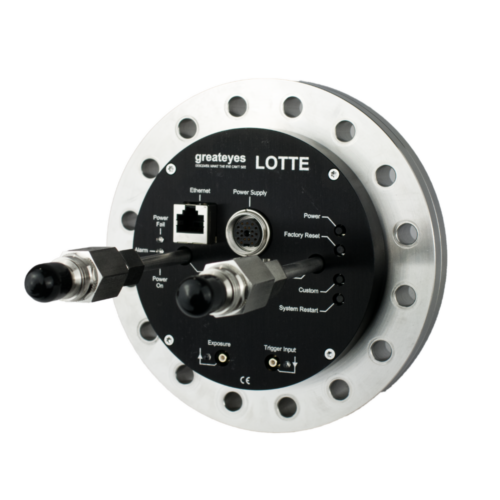

A new 18bit, UHV compatible in-vacuum CCD camera, optimised for lowest outgassing and deepest cooling. LOTTE can be submerged, operated and positioned freely inside a vacuum chamber.

Description

LOTTE-s 2k512

This series of highly sensitive, cooled in-vacuum cameras is equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, EUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers scientific CCD sensors with different technologies and with quantum efficiencies up to 98%.

 LOTTE-s 2k512 FILOTTE-s 2k512 BILOTTE-s 2k512 BI UV1
Image area27.6 mm × 6.9 mm27.6 mm × 6.9 mm27.6 mm × 6.9 mm
Pixel format2048 × 512 pixels2048 × 512 pixels2048 × 512 pixels
Pixel size13.5 µm × 13.5 µm13.5 µm × 13.5 µm13.5 µm × 13.5 µm
CCD sensor coolingMin. -100°C to 20°C, liquid coolingMin. -100°C to 20°C, liquid coolingMin. -100°C to 20°C, liquid cooling
Gain1 (standard mode) / 0.34 (high capacity mode) counts/e- 1 (standard mode) / 0.34 (high capacity mode) counts/e-1 (standard mode) / 0.34 (high capacity mode) counts/e-
Data linkGigabit EthernetGigabit EthernetGigabit Ethernet
Distance flange - focal plane6 mm6 mm6 mm
Dimensionsrc version: 98 mm × 90 mm × 235 mm
sc version: 90 mm × 127 mm × 189 mm
rc version: 98 mm × 90 mm × 235 mm
sc version: 90 mm × 127 mm × 189 mm
rc version: 98 mm × 90 mm × 235 mm
sc version: 90 mm × 127 mm × 189 mm
Weight4.4/4.6 kg 4.4/4.6 kg 4.4/4.6 kg
CCD sensor typeFront-illuminatedBack-illuminatedBack-illuminated, enhanced process
Sensor coating---
Full well capacity100,000 e- 100,000 e-100,000 e-
Common Specification LOTTE In-Vacuum Cameras
Pixel readout frequency50 kHz, 250 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode; up to 20 MHz with multi-port readout)50 kHz, 250 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode; up to 20 MHz with multi-port readout)50 kHz, 250 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode; up to 20 MHz with multi-port readout)

Click here to download the datasheet

Quantum efficiency curves

QE of the LOTTE-s series
