LOTTE-i 1k1k

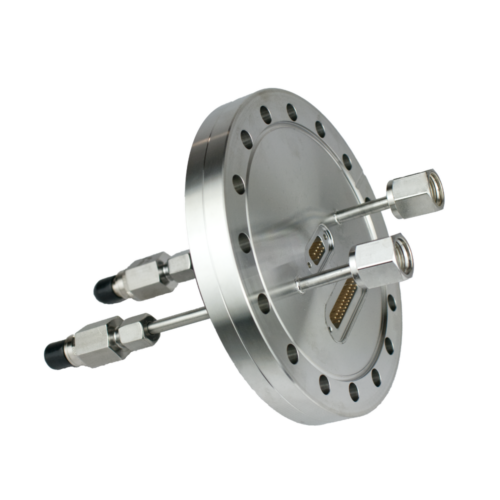

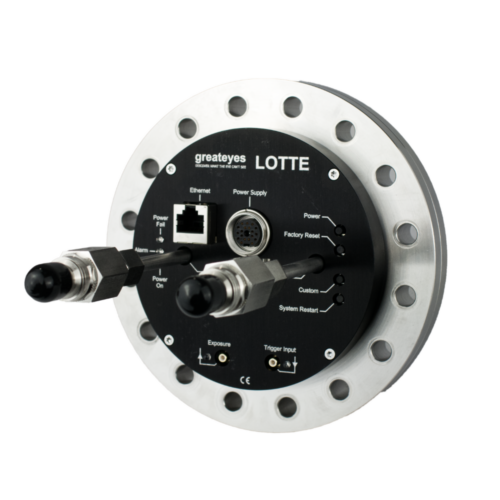

A new 18bit, UHV compatible in-vacuum CCD camera, optimised for lowest outgassing and deepest cooling. LOTTE can be submerged, operated and positioned freely inside a vacuum chamber.

Description

LOTTE-i 1k1k

This series of highly sensitive, cooled in-vacuum cameras is equipped with ultra-low noise 18-bit readout electronics and perfectly suited for spectroscopy and imaging applications in the VUV, XUV and X-ray range up to 20 keV. The CCD detectors deliver spectra and images with outstanding dynamic range. To find the best solution for your application, greateyes offers different sensor technologies with quantum efficiencies up to 98%.

	LOTTE-i 1k1k FI	LOTTE-i 1k1k BI	LOTTE-i 1k1k BI UV1	LOTTE-i 1k1k BI DD
Image area	13,3 mm × 13,3 mm	13,3 mm × 13,3 mm	13,3 mm × 13,3 mm	13,3 mm × 13,3 mm
Pixel format	1024 × 1024 (FI) / 1056 × 1027 (others) pixels	1024 × 1024 (FI) / 1056 × 1027 (others) pixels	1024 × 1024 (FI) / 1056 × 1027 (others) pixels	1024 × 1024 (FI) / 1056 × 1027 (others) pixels
Pixel size	13 µm × 13 µm	13 µm × 13 µm	13 µm × 13 µm	13 µm × 13 µm
CCD sensor cooling	Min. -100°C to 20°C, liquid cooling	Min. -100°C to 20°C, liquid cooling	Min. -100°C to 20°C, liquid cooling	Min. -100°C to 20°C, liquid cooling
Gain	1 counts/e-	1 counts/e-	1 counts/e-	1 counts/e-
Data link	Gigabit Ethernet	Gigabit Ethernet	Gigabit Ethernet	Gigabit Ethernet
Distance flange - focal plane	6 mm	6 mm	6 mm	6 mm
Dimensions	rc version: 98 mm × 90 mm × 235 mm sc version: 90 mm × 127 mm × 189 mm	rc version: 98 mm × 90 mm × 235 mm sc version: 90 mm × 127 mm × 189 mm	rc version: 98 mm × 90 mm × 235 mm sc version: 90 mm × 127 mm × 189 mm	rc version: 98 mm × 90 mm × 235 mm sc version: 90 mm × 127 mm × 189 mm
Weight	4.4/4.6 kg	4.4/4.6 kg	4.4/4.6 kg	4.4/4.6 kg
CCD sensor type	Front-illuminated	Back-illuminated	Back-illuminated, enhanced process	Back-illuminated, deep depletion, fringe suppression
Sensor coating	-	-	-	-
Full well capacity	100,000 e-	100,000 e-	100,000 e-	120,000 e-

Common Specification LOTTE In-Vacuum Cameras
Pixel readout frequency	50 kHz, 250 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode; up to 20 MHz with multi-port readout)	50 kHz, 250 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode; up to 20 MHz with multi-port readout)	50 kHz, 250 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode; up to 20 MHz with multi-port readout)	50 kHz, 250 kHz, 1 MHz, 3 MHz (5 MHz for visualization mode; up to 20 MHz with multi-port readout)

Showing 1 to 15 of 15 entries

Click here to download the datasheet

Quantum efficiency curves

QE of the LOTTE-i series
