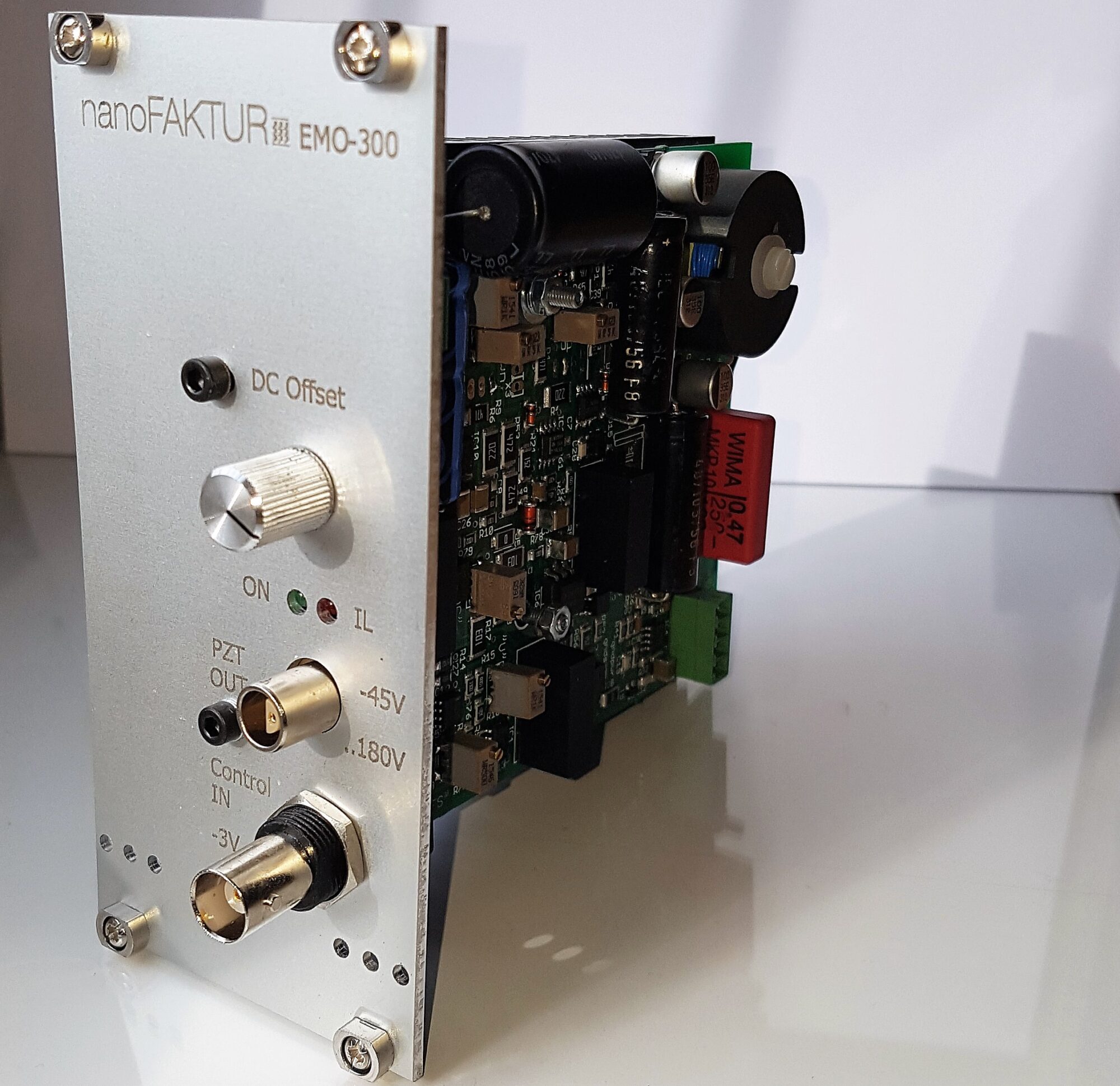

Rack Mounted Module EMO-300100

High Power Version Piezo Controller

Description

Rack Mounted Driver EMO-300100

  • Output -45… 180 V
  • Max. 600 mA
  • Average max. 300 mA
  • Input -3.. 12 V
  • Offset Adjustment Potentiometer
  • Low Noise
  • Short Circuit Proof

Rack Mounted high power version Piezo Controller

Product CodeEMO-300100UnitTolerance
Channels1
Output Voltage-45 to 180V
Input Voltage-3 to 12V
Offset-Adjustment with Potentiometer0 to 10V
Amplification15nm
Noise, Output0.3mVRMS
Max. Current (<50 ms)600mA
Max. Average Current300mA
Max. Capacitive Load at Output25µF
Overload ProtectionShort Circuit Proof
Supply Voltage24Vdc
Plug, outputLemosa, EPL.0S.302.HLN
(Fitting Socket: FFA.0S.302.CLADxx)
Connector, Power Supply2-way Phoenix
Analogue InputBNC
Offset adjustmentPotentiometer, knob
Working temperature-5 to 50°C
Designrack mount module
Dimensions3 HU, 12 RU
Standards2006/95/EC, Low Voltage Directive
2004/108/EC, EMC Directive
2011/65/EU, RoHS
Safety (Low Voltage Directive): EN 61010-1:2010
EMC: EN 61326-1:2013
RoHS: EN 50581:2012
